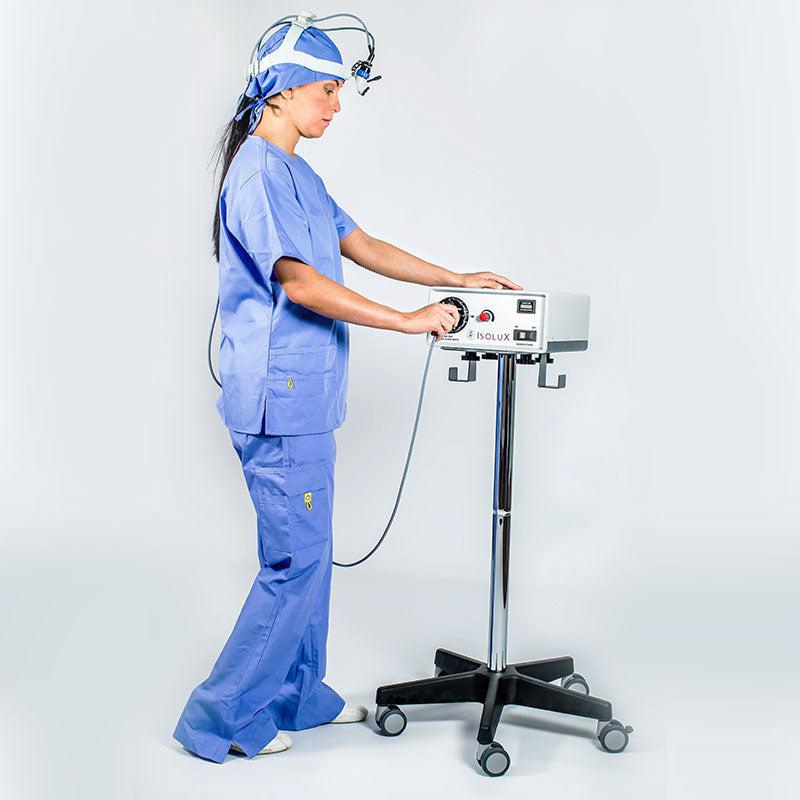

OptiLux Light Source Illuminator, IL-2386

Product

Features

• 125-Watt power saving LED system
• Intensity variable of 10-100%
• CRI of more than 92 to give the best tissue rendition
• 130,000 Lux at the end of an 8ft x 0.20 inch fiber light guide cable
• Available as a tabletop or model with stand

Packages Include:

IL-2386 – OptiLux LED Illuminator, Portable (No Stand)IL-2385 – OptiLux LED Illuminator w/ Mobile Floor Stand

Medical LED Light Source

The OptiLux Light Source Illuminator is well-suited for various platforms, featuring a single large-area LED chip, custom collection surgical optics for optimal light coupling into 3- to 6mm fiber optic bundles, a heat sink, fans, linear intensity control, and an AC power supply. Developed to replace outdated technologies like halogen and metal halide bulbs, the OptiLux Light Source eliminates color temperature changes, age-related issues, and safety disposal concerns associated with mercury lamp bulbs. This makes it an excellent choice for phasing out older lamps, ensuring reliable and efficient medical illumination.

The major benefits of the OptiLux Fiber Optic Illuminator are its ability to reduce power consumption by up to 50% and long life; up to 50,000 hours chip life leading to reduced cost of ownership. No significant wavelengths are generated outside the desired range, making wavelengths and color temperature tailored for your application. The front panel displays the intensity and has soft tactile up / down buttons providing total intensity control ranging from 10 to 100%. An 8ft x 0.2 inch fiber light guide cable provides 130K lux when used with our 6000K chip.

Applications for the Fiber Optic
LED Light Source

The OptiLux LED Light Source is designed to be a perfect partner in medical video camera illumination, endoscopy, microscope illumination, and photo-sensitive applications such as UV curing and dental whitening due to the OptiLuxs lack of both ultraviolet (UV) and infrared (IR) radiation. Available with mobile stand or as a tabletop version.

• Includes (Standard Model)

  • OptiLux Light Source
  • AC/DC Power Cord
  • Manual

  Warranty

  • Three (3) Years on LED Light Source

  Product

  Specifications

  Light Intensity

  130,000 Lux

  LED Life

  50,000 hours

  Color Temperature

  5,500 6,200

  Color Rendition Index (CRI)

  92

  Input AC Range

  100 to 240 VAC @ 50 to 60 Hz

  Input Power

  80 watts (125w Equivalent)

  Dimming Range

  10 100%

  Operating Temperature

  10 to 40 C

  Storage Temperature

  10 to 70 C

  Operating Humidity

  20 to 93 % non-condensing

  UL Compliant

  IEC 60601-1 Safety Tests

  FDA Certification

  FDA 510K

  Weight

  9 lbs

  Dimensions

  5.75 H x 7 W x 11 D
